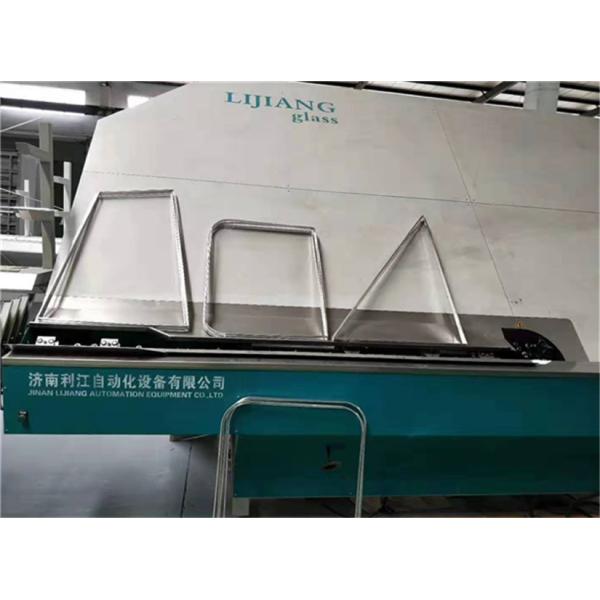

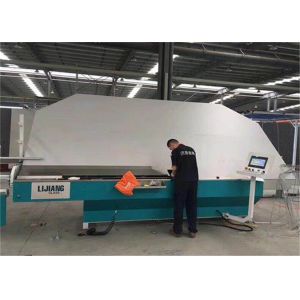

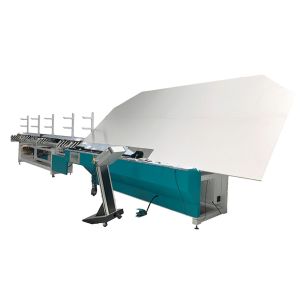

Automatic Insulating Glass Aluminum Spacer Bending Machine for glass Processing

Technical parameter of Automatic spacer frame bending machine

Main feature of Automatic Aluminum Spacer Bending Machine

● Lijiang glass aluminum spacer bending machine adopts servo control feed method, and spacer frame size can be adjusted with an accuracy of 0.1mm / m.

● You can freely choose multiple sizes of aluminum bars.

Automatically adjusts bending speed according to the size of the aluminum frame

Prevents deformation of large frames and ensures high speed and continuity of small frames

● Installed 4 groups of spacer storage units

● Automatic continuous connection of spacers, spacer cutting, spacer bar joint height

● No important prompts, sleep prompts, failure prompts, word prompts, unjustified data

Garbage disposal and quick support Arc type aluminum frame and special shape aluminum frame bending

● USB function that can read Excel directly ● Connect with ERP (optional)

Production Overview of aluminum alu-spacer bending machine

Insulating glass is made of 2 or more float glass with argon desiccant with aluminum frame. The primary seal (butyl) and the secondary seal (polysulfide or structure) between the hollow glass and the aluminum frame. When the insulating glass is coated with Low-E film, it will be effectively protected by radiation.
Automatic aluminum gasket bending machine is special equipment for manufacturing hollow glass aluminum frame, which replaces traditional manufacturing technology.
The automatic gasket bending machine can make one aluminum strip at a time, and make a variety of convex polygonal aluminum frames, thereby enhancing the strength of the aluminum frame and making the sealing effect of the insulating glass better.

Detail of Automatic spacer bending machine

11.USB input function ,it can read the excel data directly

Related Product

Sealant-spreading Machine LJST02A

Main feature

• Imported motor system to improve equipment efficiency

• Imported sealant gun,stainless steel mixer

• High pressure protect device

• Anti-back flow control structure

• Mixed rate detector can control the rate of two kinds of glue

Technical data

Butyl Extruder Machine LJTB 01

Main feature

•PLC control system, touch screen interface

•Automatically recognize the width of the aluminum strip, and the glue nozzle can be automatically adjusted

• The key part of the hydraulic system uses components imported from Germany to ensure that the plastic is evenly filled

•Quick preheating to improve work efficiency

•Has preheating function

• With the function of exhaust and inflation, improve the sealing quality and save plastic time

• Fast coating speed, up to 47m/min

•Save the amount of glue

Technical data

Electrical parameters

Smart Vertical Edge Deleting Machine LJCM2545

Main feature

•Two-way glass channel

•Automatic size measurement

•Automatically identify low-emission surfaces

• The head can be rotated 360°

•Safe and fully automatic equipment

•PLC control system, touch screen interface

•Six servo control system

• Edge deletion is adjustable

•Intelligent control system, can identify batch processing

Technical data

Electrical parameters

Butyl Extruder Machine LJTB 03

Main feature

• PLC control system, touch screen interface

• Frequency control system

• Arc frame coating structure

• Imported pneumatic and hydraulic supercharging system

• Automatic centering and clamp structure

• Up to 14KG load capacity, saves adhesive supply time

• Adopt 5 steps to control transmission

• Preheating function, adhesive cylinder limiting function, alarm system

• Adhesion/adhesion mechanism adopts the latest design

Technical data

Glass Washing Machine

Main feature:

• Use 6 soft brushes

• Cleans online and offline low-e glass and automatically recognizes Low-e film

・ The cleaning part adopts a design with a vertical layer structure

• Adopts variable frequency fan, energy efficient and excellent cleaning effect

• The air knife can automatically adjust the width of the air knife according to the thickness

• Use of intelligent intermittent energy-saving work methods

• Hierarchical cleaning system

• Automatic temperature control of water tank, water supply system

• European silencer system

• 304 stainless steel material

3.Desiccant Filling Machine

Main feature

• Adopt Siemens PLC control system

• Touch screen interface, easy operation

• The height can be adjusted according to the size of spacer frame

• Automatically loading and replenish desiccant

• Filling time can be adjusted

• Automatically drilling, filling and sealing

• Core parts are imported brands

• Arc frame (optional)

• Fill large particle molecular sieve (Optional)

Technical data
