Automatic spacer bending machine can make a variety of convex
polygon aluminum frames with one aluminum strip at a

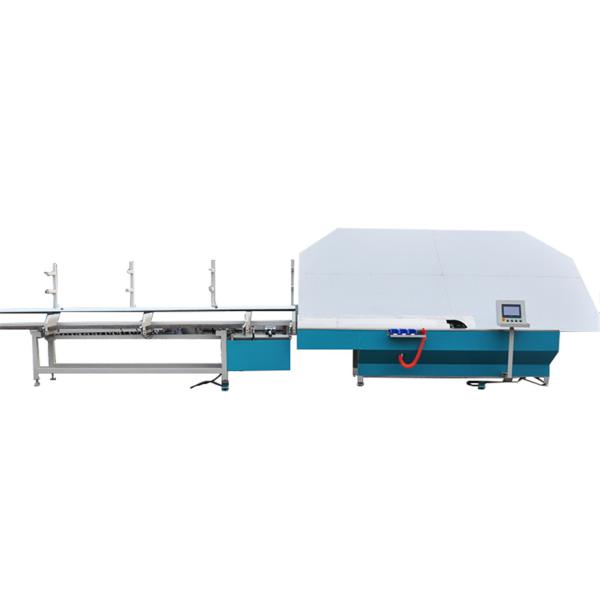

Automatic spacer bending machine LJZW2020
Automatic spacer bending machine is a special equipment for making
aluminum frames of insulating
glass, which replaces the traditional fabrication technology.
Automatic spacer bending machine can make
a variety of convex polygonal aluminum frames by one aluminum strip
in one time, thus strengthening the
strength of the aluminum frame, making the sealing effect of the
insulating glass more better.
| Max.bending size | 2000mm*2000mm (2500mm*2500mm) |
| Min.bending size | 250mm*200mm |
| Aluminum spacer width | 5.5-27mm |
| Dimensional error | ±0.5mm |
| Angle error | ±1º |
| Processing speed | ≤26s |
| Air supply | ≥0.65MPa |
| Total power | AC220/380V 50Hz 2.5KW |
| Dimension | 10500mm*2200mm*2600mm |
Electrical parameters of fully automatic bar bending machine
| NAME | BRAND | NAME | BRAND |
| PLC | GERMAN SIEMENS | Triplet | Taiwan AIRTAC |
| Low voltage electrical apparatus | GERMAN SIEMENS | Cylinder | Taiwan AIRTAC |
| Servo motor | GERMAN SIEMENS | Solenoid valve | Taiwan AIRTAC |
| Servo driver | GERMAN SIEMENS | Switch power | Taiwan TEND |
| Relay | JAPAN OMRON | TOUCH SCREEN | Taiwan WEINVIEW |
| Sensor | KOREA AUTONICS | GUIDE | Taiwan TBI |
² Equipment details of aluminum bending machine
- Adopt Siemens PLC control system
- There are 4 Siemens servo
- Adopt 12 sets of racks which could storage more different sizes of
spacers. Use Siemens
- servo to change different racks.
- Automatically cut and feed aluminum spacers
- Bend shaped spacer frames continuously
- Automatically avoid the connecting corner while bending and cutting
- The machine grabs the spacer from the top instead of grabbing the
spacer from bottom, solving
- the old-fashioned reversing problem.
- Using industrial computer technology which could realize the
on-site drawing by workers on the
- industrial computer and directly bending the drawn graphics.
- The special machine hand device is used to bend big spacer frame
FAQ
Q: What is the system of Kation’s after sale service?
A: Kation has its own special system for the service, we make a
“tree of knowledge”for guiding customer to find the usual
problem and the answer when customers meet.
Q: What is the details of the after sale service?
A: Step1: Notice before installation
Step2 : Confirm before installation
Step3: On-site installation
Step4: On-site debugging
Step5: On-site training
Step6: Client sign
Step7: On-line service
Step8: Technical service
More details please search www.lijiang-glass.com
Q: What's the payment term?
A: T/T, L/C and other payment terms could be negotiated.
Q: About this Machine,What’s the guarantee ?
A:1)Our guarantee for 12 months.
2)24 hour’s technical support by email or calling
3)English manual and video tutorial
4)We will provide the consumable parts at an agency price
5)24 hours on line service each day, free technical support
