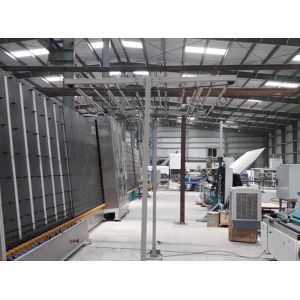

Easy spacer frame transfer tool for spacer frames storage in front of IG line

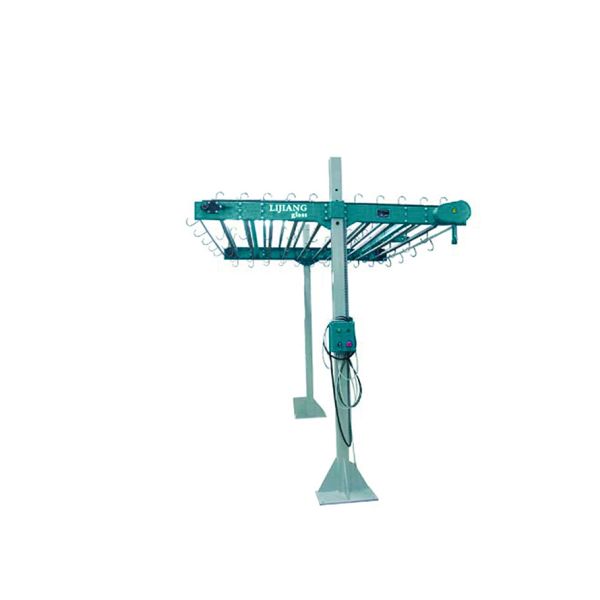

LJSJ02 Aluminum Spacer Transmit Machine is special equipment placing and transmitting aluminum spacer in the process of insulating glass production, can prevent aluminum frame deformation of spreading butyl sealant and adhesion to each other, can store large amounts of aluminum frame and forward through the foot switch.

The performance of this machine is stable, safe, reliable, simple to learn, is the indispensable ideal equipment in the production of insulating glass .

1. Main technical parameter

2. Structure and feature

The machine consists of four columns, the transmission system, and hook, transmission system consists of the frame, motor, sprockets, chain and tensioner device and so on.

3. Electrical control system

with electrical schematic.

4. Installation and operation

1) According to label connect the four columns with the transmission frame, and fix with foot bolt.

2) Hook will be installed in the board, tighten the nut.

3) Connect the power commissioning.

4) Transmission with foot switch control.

5. Maintenance

In order to ensure the good functioning of the machine, the machine should be strengthened daily maintenance and repair, during operation process if abnormality occurs, immediately stop and inspect, after troubleshooting and re-use.

According to the chain transmission adjust tension device.

Main feature

• Spacer frame transport
• Easy operating, simple and flexible

Technical data
