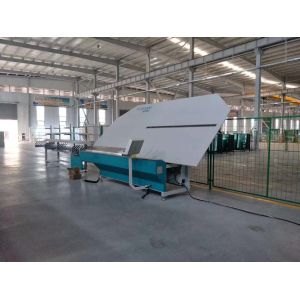

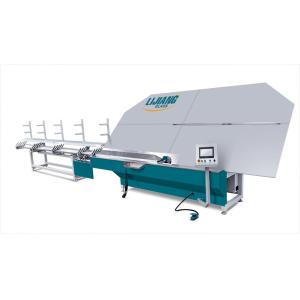

Insulating glass aluminum bar bending machine For Insulating Glass processing

Automatic gasket bending machine is a special equipment for manufacturing aluminum frame

Insulating glass replaces traditional manufacturing technology. The device can

Use one aluminum strip at a time to make various convex polygonal aluminum frames,

Thereby enhancing the strength of the aluminum frame, making the sealing effect of the aluminum frame

Hollow glass is better.

Using Siemens PLC control system

Siemens servo has 4

With 12 sets of racks, more gaskets of different sizes can be stored. Use Siemens

Servo changes to different racks.

Automatically cut and feed aluminum gasket

Continuously curved spacer frame

(1) Slot: Four storage slots can save one to four types of aluminum gaskets

The same width or different widths can be automatically accessed when the device is running.

The positions of the four slots can be switched freely;

(2) Charging platform: the charging platform will provide operators with an operating platform

Add material in the trough;

(3) Automatic feeding system: when the equipment is running, the automatic feeding system

Transfer the aluminum gasket to the preparation position; during the bending process, if the aluminum

The shim for bending has reached the end, the automatic paper feeding system will be completed

The following actions of the aluminum gasket to ensure the continuity of the bending work and realize

No tailing function;

(4) Slot changing mechanism: If the aluminum strip in the pre-groove is completed, it is

A system that can be used to replace materials to replace materials into troughs.

(5) Foot switch for changing slot: used to open the locking device and operate

The mechanism of change.

Automatic drill gas filling hole (Optional)

Can bend aluminum spacer ,Technoform, Alupro, Thermix, warm spacer (Swisspacer) and

stainless steel ( Optional) and so on.

Printing paper label sticker function (Optional),could remove it easily.
