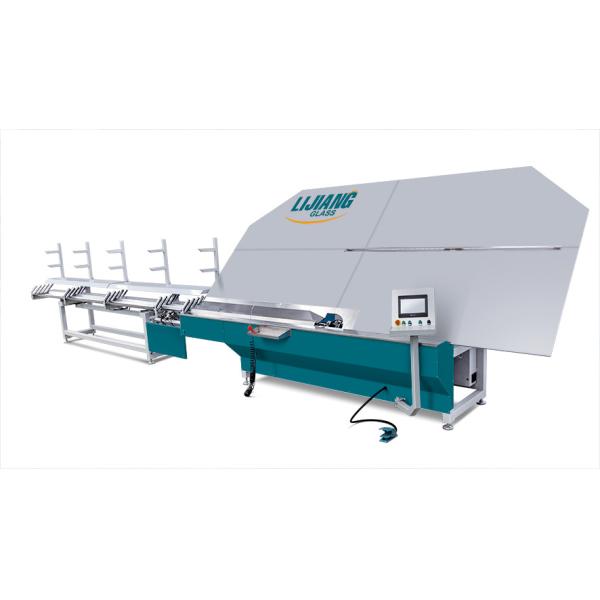

LJZW 2020A Automatic Bar Bending Machine Good quality and high production efficiency

Application

Automatic spacer bending machine is a special equipment for making aluminum frames of insulating glass, which replaces the traditional fabrication technology. This equipment can make a variety of convex polygonal aluminum frames by one aluminum strip in one time, thus strengthening the strength of the aluminum frame, making the sealing effect of the insulating glass more better.

We have the special soft system which could avoid the 120mm to reduce waste. For example, if the length of the gusset is 60mm, when the program calculates the right angle, there is a gusset. When you start to bend the rectangular frame, you need firstly transport 120mm, then cut 120mm, and then step on the pedal to bend frame, so you will waste the 120mm.

Equipment details

Adopt Siemens PLC control systemThere are 4 Siemens servo,Adopt 12 sets of racks which could storage more different sizes of spacers. Use Siemens servo to change different racks.

Automatically cut and feed aluminum spacers,Bend shaped spacer frames continuouslyAutomatically avoid the connecting corner while bending and cutting.The machine grabs the spacer from the top instead of grabbing the spacer from bottom, solving the old-fashioned reversing problem.Using industrial computer technology which could realize the on-site drawing by workers on the industrial computer and directly bending the drawn graphics.The special machine hand device is used to bend big spacer frame

USB input function, read the excel format file directly etc (Optional)Connect to, ERP system (Optional)​Can bend aluminum spacer ,Technoform, Alupro, Thermix, warm spacer (Swisspacer) and stainless steel ( Optional) and so on.First put the nose part in place, adjust the level. Then move the rack to the left end of the nose section, a distance of 40-50mm. Connect the power supply and air source, and put a section of 1300-1500mm straight aluminum strip in the corresponding material groove of the left and right sections, and adjust the bottom Angle of the material rack to make it docking neatly.
