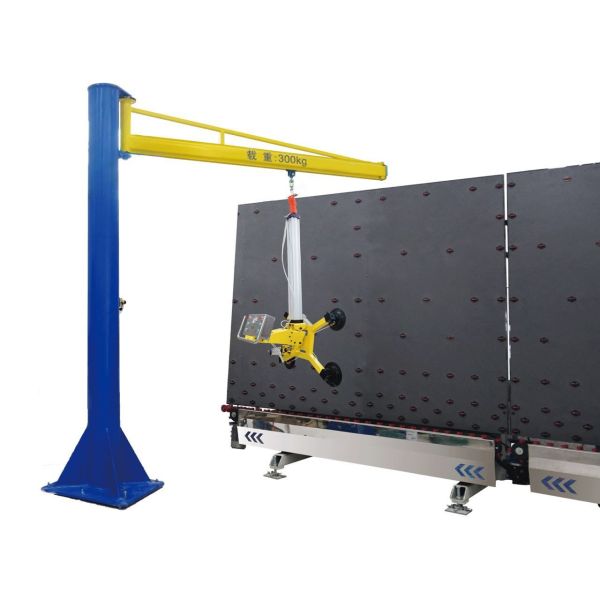

Glass Cantilever Crane with lifting sucker for insulating glass
Processing
Technical data
| Max. load | 300kg (500kg is optional) |
| Rotated angle | 90° |
| Upright height | 3400mm or 3900mm |
| Rail length | 1000mm |
| Quantity of sucker | 2 or 4 |
| Air pressure | 0.5MPa-0.8MPa |

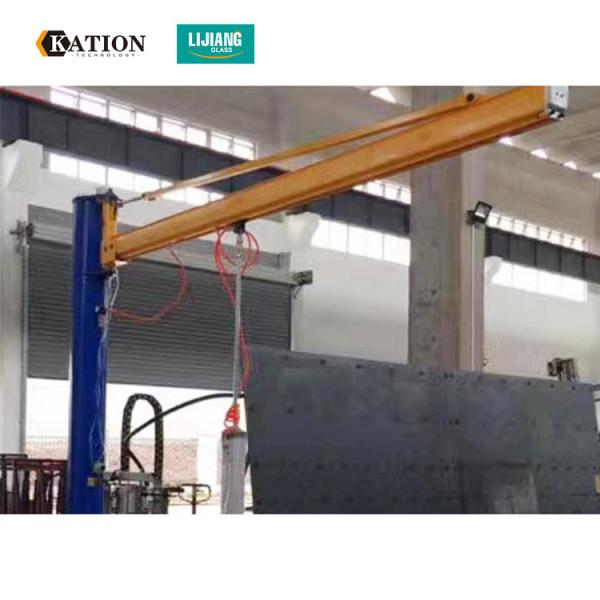

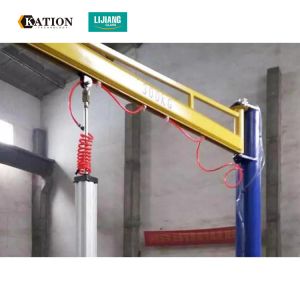

Jib crane is common light lifting equipment in modern production.
It is fit for frequent lifting work of short distance between fixed
positions. It has advantages of high efficiency, energy saving,
convenience, occupying a small area and easy operation and
maintenance. Jib crane has two structures of pillar stationary type
and binding type. You can choose either.
It is operated by using compressed air instead of using
electricity. All pneumatic components, we use Japanese SMC brand,
while we use German SCHMALZ products for vacuum parts which is the
most advanced technology of pneumatic and vacuum control in the
world.
This machine is reliable and safe, easy to operate. The device is
commonly used for glass loading and unloading work in glass deep
processing process, such as cutting, grinding, cleaning, tempered,
laminated and insulated. This device is usually used together with
jib crane beam or gantry crane frame, depending on the client's
requirements.
