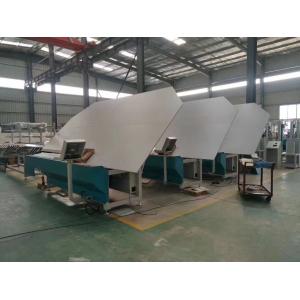

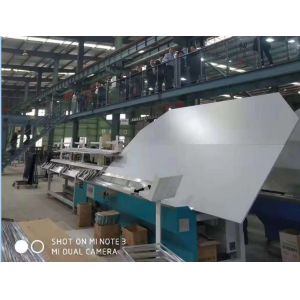

Smart double glazing spacer bending machine for sale with Siemens control system

Technical data

Electrical parameters

Main feature

• Adopt Siemens PLC control system, touch screen interface
• Japan FUJI CNC servo control system
• Four gasket size storage units
•Automatic cutting and feeding into aluminum gasket
•Adjustment function, can bend large aluminum frame
• Aluminum gaskets are available in different sizes and sizes
• Continuously curved spacer frame
• There are separate guards on the outside of the pipe bender
•Automatically avoid connection when bending and cutting
• Suspend and reset equipment to handle equipment failure

•USB input function, directly read excel format files, etc. (optional)
• Interval printing code function (optional)
•Print label sticker function (optional)
•Bendable aluminum gasket and stainless steel (optional)
• Automatic drilling of gas filling holes (optional)
• Connect to ERP system (optional)

Application

Automatic gasket bending machine is a special equipment to replace the hollow glass aluminum frame of hollow glass manufacturing technology. The device can make a variety of convex polygonal aluminum frames from one aluminum bar at a time, thereby enhancing the strength of the aluminum frame and making the insulating glass better sealed.

Equipment details

Aluminum strips can be arbitrarily selected in multiple specifications and sizes, and support continuous bending of different shapes.

separated guard board outside of bender.

Adopt 4 sets of racks which could storage more different sizes of spacers. Use Siemens servo to change different racks.

Spare parts of all machine have ID codes.

We have a special soft system that can avoid a distance of 120mm to reduce waste. For example, if the length of the gusset is 60mm, the gusset will appear when the program calculates the right angle. When you start to bend the rectangular frame, you first need to transport 120mm, then cut 120mm, and then step on the pedal to bend the frame, which will waste 120mm.
