Automatic Vertical Low-e Coating Edge Deleting Machine of
insulating glass

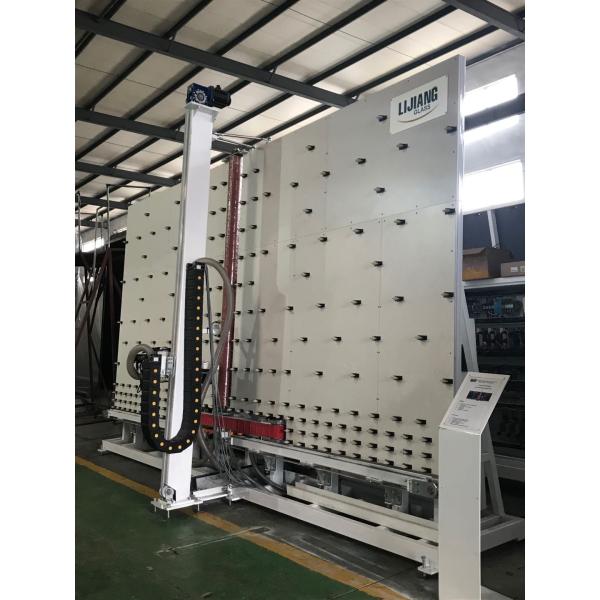

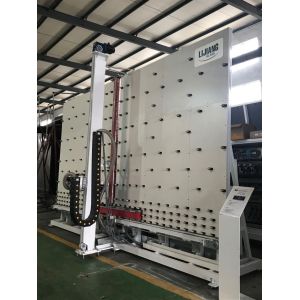

Smart Vertical Low-e Edge Deleting Machine —for Low-e Glass
Smart Vertical Low-e Edge Deleting Machine is specialized for low-e glass deleting edge with vertical
structure and convenient production line connection.Transmission
adopts imported servo control system, accurate positioning and
smooth operation. High quality grinding wheels are durable and can
produce neat and beautiful grinding crack. Distance can be set
among 10 ~ 150 mm arbitrarily. This machine always work together
with insulating galss production line and automatic glass cutting
line without low-e deletion fuction.PLC and servo motors contrl
system is usefut to make machine working stable and fast.
►Main feature
1.Two-way glass access
2.Auto measure the size and the thickness
3.Auto distinguish coating side of low-e glass(optional)
4.Auto-modified function
5.The pressure of edge deleting is stable and adjustable
6.Safety protection device auto-dedusting function
7.PLC control system,touch screen interface
8.Six servo control systems
►Main technical parameter
| Transmission speed | 2~29m/min |
| Edge finish speed | 2~29m/min |
| Glass thickness | 3~15mm |
| Diameter of grinding wheel | 200mm |
| Width of grinding wheel | 10/12/15mm |
| Grinding wheel speed | 0~3000r/min |
| Min.Glass | 400×400mm |
| Max. Glass | 2500×4000mm |
| Conveyor height | 500mm |
| Total air consumption | 100L/ min |
| Total weight | 3700KG |
| Dimensions | 9700×2500×3400mm |
1,Transmission section Two-way glass access,from left/right. Auto-identification surface. The width of edge deleting can be adjusted. |
2,Electrical components We adopt SIMENS and DELTA |
Glass after edge deleting |
Low-E coating checking system |
Glass Washing Machine LJLBQJ2500
Structural characteristics:
* The rest of the sheet metal parts are sprayed with advanced
mechanical paint or powder；
* Aluminum alloy assembled structure, no scrap concept, permanent
use,high efficiency, energy saving 70% efficiency；
* The rubber roller is made of vulcanized rubber with stainless
steel shaft；
* The washing part in contact with water is made of stainless
steel；
* Cleaning department, wind staff overall lift, the maximum lift:
350mm,easy to clean and maintain；
* Three pairs of brush(Ø150mm)Stainless steel shaft configuration
(low-e glass, ordinary coated glass and sunshine coated glass can
be washed without damaging the coated surface)；
* Two pairs of special stainless steel aluminum alloy air knife
configuration, strong wind, good air drying effect, with heating
system(with temperature control device, optional opening and
closing)；
* The fan is equipped with air filter in the air inlet chamber,
with large air volume and good air drying effect,The whole fan box
is installed in the upper part of the workshop, with the air filter
screen on the side for easy inspection and cleaning；
* Main drive for gear transmission, frequency control, digital
display , the rotation of the brush roller in the washing section
is driven by independent belts of the upper and lower motors
respectively, the frequency conversion adjustment speed is
stable,the service life is long, realizes the cleaning high request
special glass；
* Mechanical button control, cleaning machine digital display, easy
to operate, easy to operate, easy to maintain；
* Washing machine water tank outside, convenient water tank
cleaning, water change, check, so that the washing machine cleaning
effect is cleaner.
* Optional with PLC control, touch screen display.It is convenient
for workers to operate and maintain, and can be connected to all
manufacturers of edge grinding machines without gap.(purchase
separately if necessary)
