Hot Sell Automatic Vertical Low-e Coating Edge Deletion Machine of
insulating glass

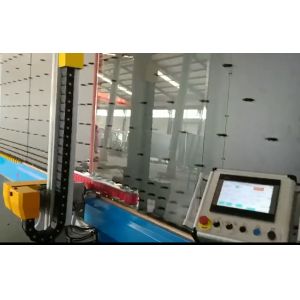

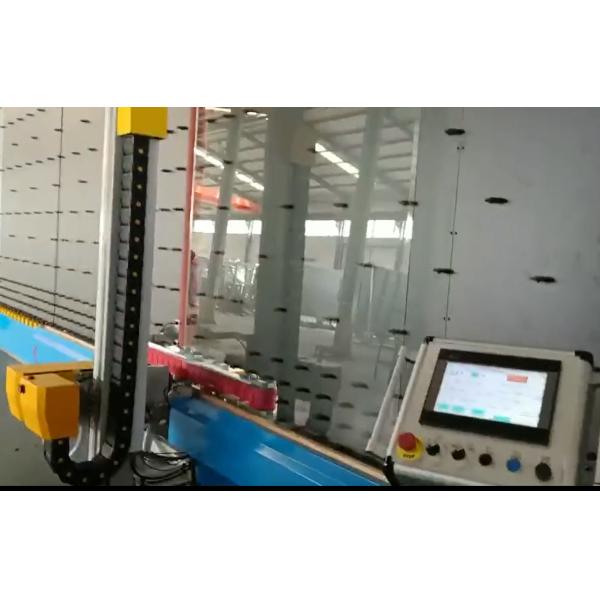

Smart Vertical Low-e Edge Deleting Machine —for Low-e Glass
Smart Vertical Low-e Edge Deleting Machine is specialized for low-e glass deleting edge with vertical
structure and convenient production line connection.Transmission
adopts imported servo control system, accurate positioning and
smooth operation. High quality grinding wheels are durable and can
produce neat and beautiful grinding crack. Distance can be set
among 10 ~ 150 mm arbitrarily. This machine always work together
with insulating galss production line and automatic glass cutting
line without low-e deletion fuction.PLC and servo motors contrl
system is usefut to make machine working stable and fast.
►Main feature
1.Two-way glass access
2.Auto measure the size and the thickness
3.Auto distinguish coating side of low-e glass(optional)
4.Auto-modified function
5.The pressure of edge deleting is stable and adjustable
6.Safety protection device auto-dedusting function
7.PLC control system,touch screen interface
8.Six servo control systems
►Main technical parameter
| Transmission speed | 2~29m/min |
| Edge finish speed | 2~29m/min |
| Glass thickness | 3~15mm |
| Diameter of grinding wheel | 200mm |
| Width of grinding wheel | 10/12/15mm |
| Grinding wheel speed | 0~3000r/min |
| Min.Glass | 400×400mm |
| Max. Glass | 2500×4000mm |
| Conveyor height | 500mm |
| Total air consumption | 100L/ min |
| Total weight | 3700KG |
| Dimensions | 9700×2500×3400mm |
1,Transmission section Two-way glass access,from left/right. Auto-identification surface. The width of edge deleting can be adjusted. |
2,Electrical components We adopt SIMENS and DELTA |
Glass after edge deleting |
Low-E coating checking system |
LJBZ2535 Vertical Automatic Insulating glass production line
APPLICATION
As the most important process of insulating glass production, we
are especially professional in glass cleaning, transmitting
pressing and gas filling(optional).The production line can do
double glass,triple glass and stepped glass.
LJBZ2535 Vertical Automatic Insulating glass production line include 7 parts: (standard model :from right to left)
1,Loading section(with low-e checking)
2,washing and drying section(can washing low-e glass)
3,conveyor section
4,checking and assembly section
5, conveyor , measure and sensor section
6,press part with gas filling
7,unloading sectionSemi-Automatic PET Bottle Blowing Machine Bottle
Making Machine Bottle Moulding Machine Advantage:
Gas filling on line syetem(option)
About Gas filling online of LJBZ2535 Vertical Automatic Insulating
glass production line, we can input the suitable gas proportion
value on the touch screen , during the gas filling process, the
touch screen can show us the whole gas filing
process visually . (You can see the video that I have sent you
before.)We are the first and the only one company who can show the
argon percentage on the touch screen on line,its very useful for
customer,When argon gas filling,it will show the whole process on
the screen. When it reach the data customer set ,It will alarm and
stop. So it can save the argon gas. And save the time.
Technical data
| Max. glass size | 2500mm*3500mm |
| Min. glass size | 280mm*400mm |
| Glass thickness | 3-15mm / 19mm |
| Insulating glass thickness | 50mm / 60mm |
| Glass washing speed | 2-10m/min |
| Glass conveyor speed | 45m/min |
| Washing brushes | 3 pairs |
| Water supply | Water consumption:0.5t/h conductivity:40μs/cm |
| Air supply | Flow: 0.8m/min |
| Air pressure | ≥0.8MPa |
| Total power | 3P 380V 50HZ 40KW |
| Dimension | 23500*3500*3700mm |
| Weight | 6500kg |
