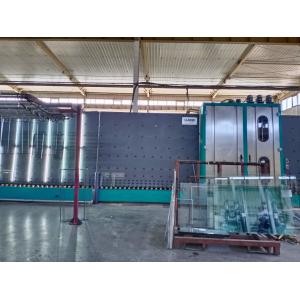

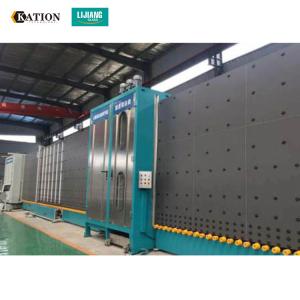

Insulating glass production line
Insulating glass production line is a kind of glass deep processing equipment, which is mainly used for processing and making insulating glass. The original glass is cut into the hollow production line
Mainly after cleaning, drying, making spacers, filling with desiccant, the first seal (coated with butyl glue),
Check, put the frame together, press the tablet, the second seal (polysulfide glue or silicone glue), the next film,
The processed products are of high quality and fast processing speed.

Advantage :

1.Cleaning and drying section:

The washing machine uses 304 stainless steel materials

2.Inspection section:

ULTRA-LONG INSULATING GLASS CAN BE CPMPRESSED TWICE.

Adopt servo torque compression

Using adjustable and non deformed front platen mechanism

The cleaning box is made of stainless steel, and the transfer roller is acid and alkali resistant rubber roller; the glass cleaning situation can be easily observed at any time through the plexiglass window; the feeding section and the cleaning and drying section are driven by manual stepless speed regulation motor. It runs smoothly at a good speed.

4. The closing section has glass positioning and aluminum frame positioning devices, which can complete the functions of glass positioning and aluminum frame positioning.

lSince there is a desiccant that can adsorb water molecules inside the hollow glass, the gas is dry. When the temperature is lowered, condensation does not occur inside the hollow glass, and the dew point on the outer surface of the hollow glass will also rise. high. For example, when the outdoor wind speed is 5m / s, the indoor temperature is 20 ℃, and the relative humidity is 60%, 5mm glass begins to dew when the outdoor temperature is 8 ℃, and 16mm (5 + 6 + 5) insulating glass Condensation only occurs when the outdoor temperature is -2 ℃, and the 27mm (5 + 6 + 5 + 6 + 5) three-layer insulating glass starts to condense when the outdoor temperature is -11 ℃.
There are three methods of energy transfer for insulating glass: radiation transfer, convection transfer and conduction transfer.
