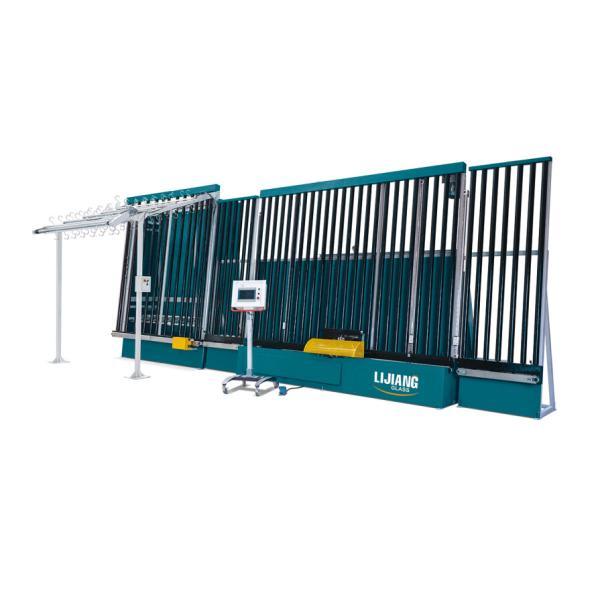

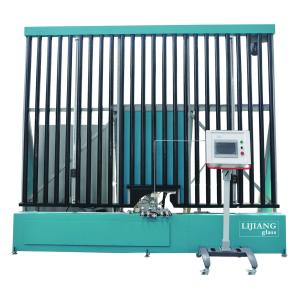

New Automatic Butyl Extruder Machine With Spacer Transfer Machine

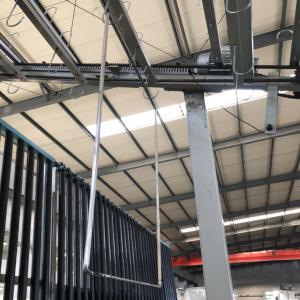

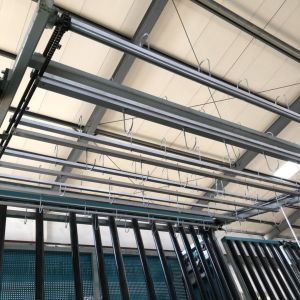

The new butyl extruder machine is one type of automatic butyl
extruder machine, which can connect with spacer transfer machine to
transfer spacer frame to the insulating glass assembly line to
realize fully automatic production, and the whole coating process
does not need manual work. This automatic butyl extruder machine

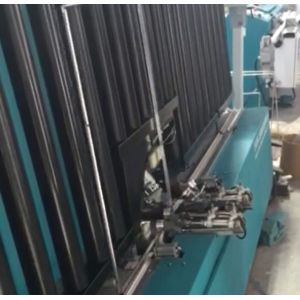

consists of pressing wheel system (linear pressing wheel, arc
pressing wheel), centering wheel, glue nozzle unit, extrusion unit,
transmission unit, rotation mechanism, support mechanism, frame
unit, hydraulic system and control system.
Machine features:
(1) There is the alarm device, it will automatically alarm when
there is no glue (there will be a prompt on the touch screen);
(2) Timing heating function, workers can set the start-up time of
the equipment in advance, the equipment will automatically start
the system heating before the official work quickly.
(3) Automatically adjust the distance between front and back glue
nozzles according to the width of aluminum spacer.
(4) The transmission motor is controlled by servo motor, and the
transmission speed can reach up to 50m / min.
(5) Large frame support mechanism, to prevent large-scale aluminum
frame from shaking by a wide margin at the corner, resulting in
frame deformation.
(6) Simple, stable and reliable operation, precise coating effect,
fast coating speed and high production efficiency.
Parameters:
| Voltage | 3P 380+N+PE |
| Power | 8.5kw |
| Coating speed | 0~50m/min |
| Minimum spacer size | 400*400mm |
| Maximum spacer size | 2400*2200mm |
| Spacer width | 6~24mm |
| Heating temperature | 100~140°C |
| Gas pressure | 0.6 MPa |
| Extrusion pressure | 17MPa |
| System pressure | 30MPa |
| Dimension (L*W*H) | 8550×1500×3500mm |
| Weight | 3000Kg |
Company Introduce:
LIJIANG AUTOMATION EQUIPMENT CO.,LTD is also called LIJIANG GLASS.
LIJIANG’ new factory covers an area of 20000 square meters, has
more than 100 employees, 6 people with middle and senior technical
titles, 8 full-time technical R & D personnel, 3 production
workshops (welding sheet metal workshop, machining workshop and
assembly workshop) and technical R & D department, and has an
independent international trading company (JINAN KATION). The
production management and sales system of the enterprise adopts the
advanced ERP and CRM management software in China to build an
efficient, accurate, united and orderly high-end team.
Our products mainly include: IG line series; Automatic sealing
robot series; Low-e film edge deletion machine; Spacer bending
machine series; Butyl extruder machine series; Desiccant filling
machine and other auxiliary insulating glass machines. About 20
products are widely used in customized insulating glass industry,
industrial aluminum alloy, building curtain wall, high-speed rail,
elevator and advertising industry.
