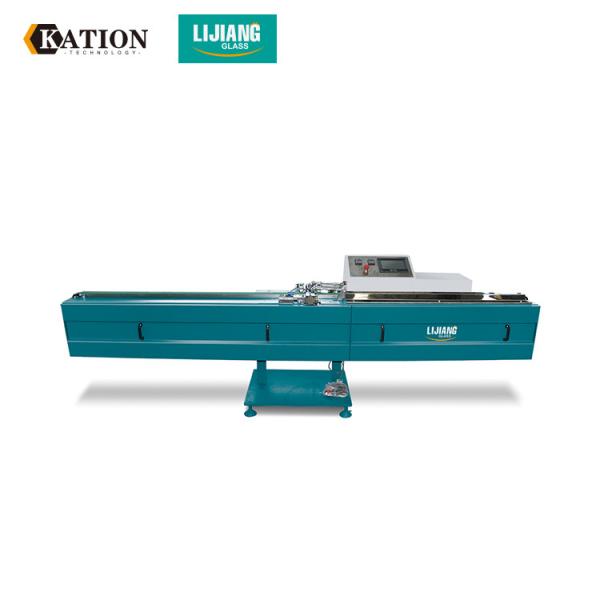

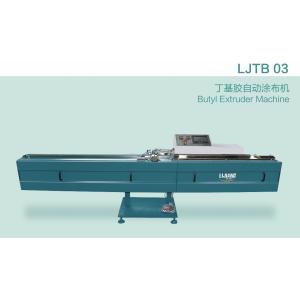

Butyl extruder machine
Products Description
Butyl rubber extruder is very popular in energy saving. The
extrusion system adopts German pneumatic and hydraulic pressure
boosting system to make the extrusion pressure more stable. Butyl
rubber extruder has achieved world-class technical level with its
complete functions and famous spare parts.
Main technical parameter
| Squeeze pressure | 10-14MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 6-24mm |
| Speed | 0-27m/min |
| Diameter of butyl cylinder | 190mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.8MPa |
| Total power | 220V/380V, 2.5KW, 50HZ |
| Dimension | 3000×620×1102mm(L×W×H) |
| Weight | 500kg |
Equipment advantages
• PLC control system, touch screen interface
• Frequency control system.
• Arc frame coating structure.
• Imported pneumatic and hydraulic booster system.
• Automatic centering and clamping structure.
• The load-bearing capacity is up to 14KG, which saves the time of
gluing.
• Take five steps to control the transmission.
• Preheating function, plastic cylinder limit function, alarm
system.
• Covey and gluing mechanism adopts the latest design.
Certifications
Packing&Delivery
To better ensure the safety of your goods, professional,
environmentally friendly, convenient and efficient packaging
services will be provided.
Company Profile
Jinan Lijiang Automation Equipment Co., Ltd. (Lijiang Glass
Factory) is located in the beautiful spring city-Jinan. It is an
enterprise integrating R & D, sales and service of glass
processing equipment. Due to the proximity to the Beijing-Shanghai
high-speed rail, the transportation is very convenient.
The company is committed to drawing on the experience of famous
experts, establishing a research and development center,
cooperating with well-known domestic and foreign enterprises,
introducing advanced technology, etc., and is committed to building
high-grade insulating glass machinery and equipment. Now, our
friendly partners include Northern Glass, Xinfuxing, Yaohua, Dalian
Huaying, Beijing Guanhua, Shanghai Haojing, Sichuan Lihehua and
other well-known enterprises. Since the establishment of the
company, our products have been exported to nearly 30 countries and
regions in Europe, America, South America, Middle East, Southeast
Asia, India and so on. At the same time, the company cooperates
with North China Industrial Group, Shandong University and other
well-known domestic research institutions to continuously improve
the level of technical research. So far, we have independently
produced a vertical automatic insulating glass production line with
filling gas, a vertical insulating glass sealing robot, an
automatic interval bending machine, an automatic dehumidifying
filling machine and a new automatic butyl rubber extruder, Its
technology and quality have reached the highest level of leadership
in China.
With the rapid development of the insulating glass industry,
Lijiang looks forward to working with you for a win-win situation
and creating a new world together.
After sale
1. The whole machine is guaranteed for one year.
2. 24-hour email technical support.
3. User friendly English software, user manual and detailed video /
CD.
4. We will provide all the spare parts needed for equipment
maintenance.
A professional after-sales service team provides face-to-face
training and installation services to customer factories.
