    Double Glazing Glass Production Line Vertical Insulating Glass Production Line

    Ask Lasest Price
    Brand Name : LIijiang Glass
    Model Number : LJBZ2545
    Certification : CE
    Price : USD 85000.00 - 90000.00
    Payment Terms : L/C, T/T
    Supply Ability : 50sets/month
    Delivery Time : 45 days
    • Product Details
    • Company Profile

    Double Glazing Glass Production Line Vertical Insulating Glass Production Line

    Vertical Insulating Glass Production Line LJBZ2535G


    Double Glazing Glass Production Line Vertical Insulating Glass Production Line

    Vertical Insulating Glass Production Line LJBZ2535G

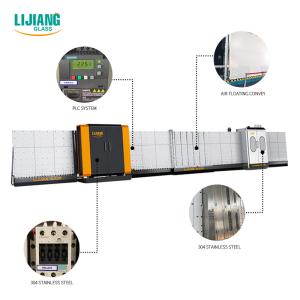

    Main Features:

    • Adopt SIEMENS control system, keep stable performance

    • PLC control system, touch screen interface

    • Automatically adjust the depth of glue with digital display

    • Using servo to control system, modular function, superposition function

    • Applicable to produce stepped IG, triple IG and shaped IG

    • Two pieces of IGU can be made and filled with argon gas in one time (Optional)

    • Min & Max glass sizes can be optional


    Double Glazing Glass Production Line Vertical Insulating Glass Production Line

    • Using 6 pieces of soft brushes

    • Wash online and offline low-e glass, automatically recognizes Low-e film

    • Washing part adopts the design of upper and lower layered structure

    • Adopt variable frequency fan, energy efficient, good cleaning effect

    • Using intelligent intermittent energy-saving working methods

    • Hierarchical type washing system

    • Water tank automatic temperature control, water replenishing system

    • European silencer system

    • 304 stainless steel materials


    • Ultra-long insulating glass can be compressed with second times

    • The machine adopts servo torque to pressing glass

    • The pressing plate with adjustable screws to guarantee long-lasting high-precision tablet

    • Equipped with a precisely adjustable front platen mechanism

    • The system can diagnose fault information

    Double Glazing Glass Production Line Vertical Insulating Glass Production LineDouble Glazing Glass Production Line Vertical Insulating Glass Production Line


    Item.Spec.
    Max. glass size2500mm*3500mm
    Min. glass size280mm*400mm
    Glass thickness3-15mm / 19mm
    Insulating glass thickness50mm / 60mm
    Glass washing speed2-10m/min
    Glass conveyor speed45m/min
    Washing brushes3 pairs
    Water supplyWater consumption:0.5t/h conductivity:40μs/cm
    Air supplyFlow: 0.8m/min
    Air pressure≥0.8MPa
    Total power3P 380V 50HZ 40KW
    Dimension23500*3500*3700mm
    Weight6500kg
