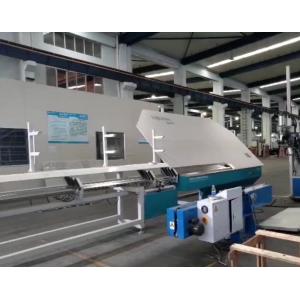

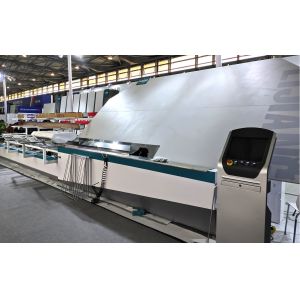

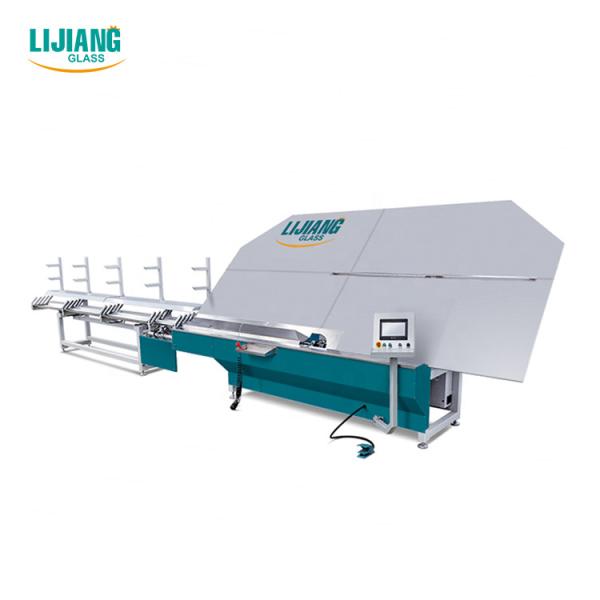

Automatic spacer bending machine F or double glass processing making LJZW2020A

Automatic spacer bending machine, with a support platform at a 45° angle to manufacture spacer frames at selectable angle which is used in insulated glass units.

FULLY AUTOMATIC SPACER BENDING
Our automatic spacer bending machine can automatically bend your spacers in desired sizes with our servo motor driven technology solutions. Thanks to servo motor driven system we offer you excellent spacer bending with minimum spacer waste at correct sizes and angles always.

AUTOMATIC SPACER ADDING SYSTEM
Automatic spacer adding system we have designed delivers up to long spacer bars directly from spacer magazine system and connects together to have the endless spacers. By this feature the bending system will always have a spacer bar ready and that will give minimum waste of the spacer.

STOCK MAGAZINE SYSTEM FOR SPACERS
Thanks to spacer magazine stock system, different spacer types with different thicknesses can be stored easily. Magazine changes can be made at any time according to the required spacer type to bent. Our well designed spacer magazine system is also useful for space saving in your production.

SHAPED SPACER BENDING
Our automatic spacer bending machine can bend spacers for different shapes optionally (Opt. SSB) according to our in house developed CMS shape library. We have different shapes are already recorded in our software with variety of ready to choose shapes which are commonly used in insulating glass production.

Main feature
•Siemens 1200 PLC control system with fast working speed
•4 groups of storages (2 or 12 groups of storages can be optional)
•Automatically cut and feed aluminum spacers
•Automatically avoid the pins while bending and cutting
•Bend spacer frames continuously

•Aluminum spacers are available in sizes of 6A-27A
•Different bending tools for different sizes of spacers
•Pause and Reset device for handling equipment failures
•Bend aluminum spacer, smooth stainless steel, warm spacer

•Connect to ERP system (Optional)
•USB input function, read the excel format file directly
•Automatically drill holes for filling argon gas (Optional)
•Spacer printing code function (Optional)
•Printing label sticker function (Optional)
•Bending shape frame. Using circle wheel device to bend circle frame or frame with circle corners. Min R60, Max R150, spacer sizes: 6A – 16A). Different sizes of aluminum bars require different size tools(Optional)

Details introduce
•Spacer printing code function (Optional)

•2 or 12 groups of storages (Optional)

•Printing label sticker function (Optional)

•Bending stainless steel ( Optional)

•Bending warm spacer (Optional)

• Using circle wheel device to bend circle frame or frame with circle corners. Min R60, Max R150, spacer sizes: 6A – 16A (Optional)

Technical data

Electrical parameters
