Good price IGU 10MPa Butyl Extruder Machine Double Glazing Glass
Processing
Overview of butyl gule extrusion coating machine

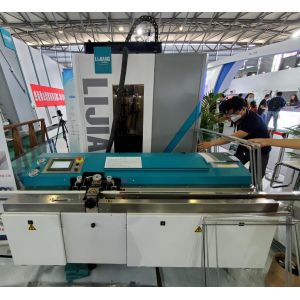

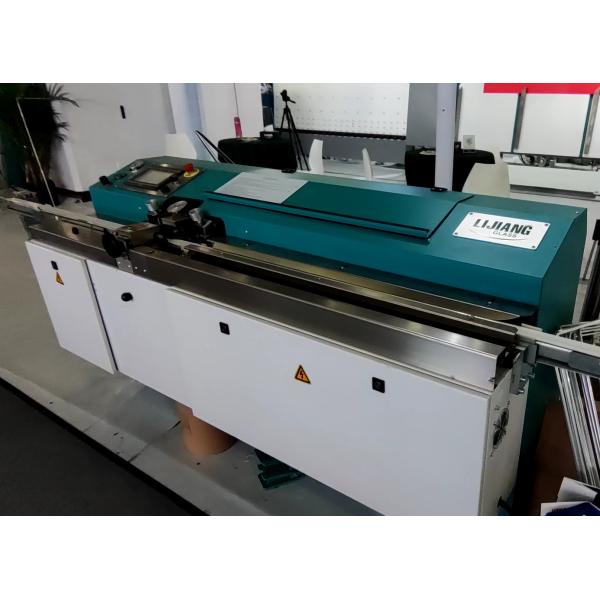

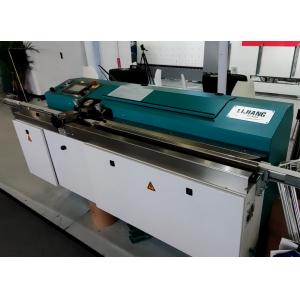

LJTB01 Butyl Extruder is special equipment for the production of
double-glazed glass. As one of the important equipment in the
production of insulating glass, the effect of butyl glue is
directly related to the waterproofing of the insulating glass. The
equipment is automatic, easy to use, and convenient to use.
The glue butyl extrusion machine is used to evenly distribute the
aluminum spacer frames with hot melt butyl. The operation of the
butyl extruder is easier than before, it uses a large electric
control panel. The aluminum conveyor is controlled by a frequency
converter. The speed can be adjusted from 0m / min to 47m / min.
Tech parameters of high-speed butyl extruder machine
| Squeeze pressure | 10-25MPa |
| Temperature | 110~140℃ |
| Glue thickness | 0.3-0.5mm |
| Glue width | 3.5mm |
| Aluminum spacer width | 5.5-26.5mm |
| Speed | 5-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5.7KW,50HZ |
| Dimension | 2800×700×900mm(L×W×H) |
| weight7 | 50kg |
Equipment details of automatic butyl coating machine
1.Germany Siemens parts
Adopt Siemens brand, stable performance.
3.Fast coating speed,can up to 47m/min
4.Germany HAVE Valve
Adopt Germany’s Harvey valve, more stable performance.
5.KINCO Touch Screen
Clear interface, Simple operation, Smart touch screen,Updated
programming.
6.Alarm system
Automatically alarm system, reminding adding butyl.
7.Germany Maximator Cylinder
The supercharging system adopts famous pneumatic and hydraulic
cylinder, control the pressure of outlet oil strongly.
8.Glue cylinder Adopt the upright structure, easy to change butyl.

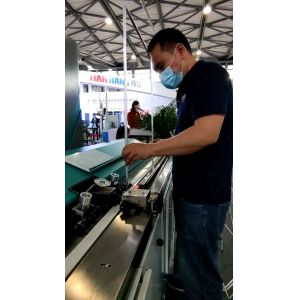

Detail picture
Optional functions of butyl coating machine:
200L glue cylinder is optional
Related Product
Automatic spacer bending machine LJZW2020
Automatic spacer bending machine is a special equipment for making
aluminum frames of insulating glass, which replaces the traditional
fabrication technology. This equipment can make a variety of convex
polygonal aluminum frames by one aluminum strip in one time, thus
strengthening the strength of the aluminum frame, making the
sealing effect of the insulating glass more better.
Equipment details
- Adopt Siemens PLC control system
- There are 4 Siemens servos
- Adopt 12 sets of racks which could store more different sizes of
spacers. Use the Siemens servo to change different racks.
- Automatically cut and feed aluminum spacers
- Continuous bend shaped spacer frames
- Automatically avoid connecting corner when bending and cutting
- The machine grips the spacer from the top instead of gripping the
spacer from the bottom, which solves the old-fashioned reversal
problem.
- Using industrial computer technology which could realize the
drawing on the spot by the workers on the industrial computer and
directly bend the drawn graphics.
- The special machine hand device is used to fold the large spacer
frame
Technical data
Max.bending size | 2000mm*2000mm (2500mm*2500mm) |
Min.bending size | 250mm*200mm |
Aluminum spacer width | 5.5-27mm |
Dimensional error | ±0.5mm |
Angle error | ±1º |
Processing speed | ≤26s |
Air supply | ≥0.65MPa |
Total power | AC220/380V 50Hz 2.5KW |
Dimension | 10500mm*2200mm*2600mm |
Related product
1.Manual Gas Filling Machine LJCJ02N
Main feature
• It is used for filling Argon into insulating glass
• High effectively, allowed for four pieces of IGU
• When the gas is full,it will alarm and stop automatically
• Can set and display the data of gas value
Technical data
| Power supply | 220V 50Hz |
| Total power | 0.1kw |
| Dimension | 620*439*700mm |
2.Cantilever crane LJXJ300
Technical data
| Max.load | 300kg |
| Rotated angle | 90° |
| Upright height | 3400mm or 3900mm |
| Rail length | 1000mm |
| Quantity of sucker | 2 or 4 |
| Air pressure | 0.5MPa-0.8MPa |
