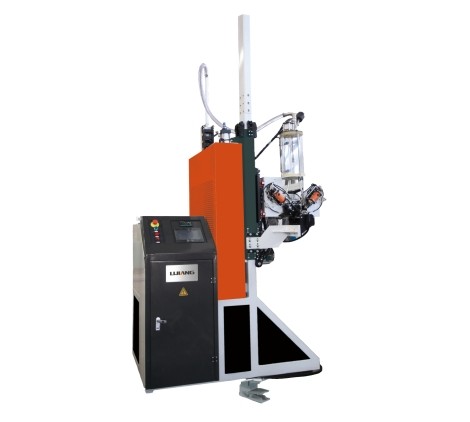

Desiccant Filling Machine LJGZ2020

    Buy cheap Desiccant Filling Machine LJGZ2020 from wholesalers

    Buy cheap Desiccant Filling Machine LJGZ2020 from wholesalers
    • Buy cheap Desiccant Filling Machine LJGZ2020 from wholesalers

    Desiccant Filling Machine LJGZ2020

    Ask Lasest Price
    Brand Name : Lijiang glass
    Model Number : LJGZ2020
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 20 sets/month
    Delivery Time : 45 days
    • Product Details
    • Company Profile

    Desiccant Filling Machine LJGZ2020


    Main feature

    • The filling height can be adjusted according to the size of spacer frame
    • Filling time can be adjusted
    • Desiccant auto loading and replenishment
    • Auto drilling, filling and sealing function
    • Germany Siemens PLC control system
    • Touching screen interface, simple and visible
    • Adding glue way is safe and easy
    • Machine can fill the arc frame.(optional function)
    • Can fill Molecular sieve diameter 1.0mm-1.5mm(optional function)
    • Big bucket desiccant 200L,save desiccant refill time ,improve the work efficiency

    Technical Data

    Filling aluminum frame’s maximum size2000mm*2000mm
    Filling aluminum frame’s minimal size300mm*250mm
    Article aluminum specifications5.5-24mm
    Air source≥0.65MPa
    Power supply and power consumptionAC220V 50Hz 1.8KW
    Molecular sieve diameter needed0.5-0.9mm
    Dimension1300mm*1100mm*3650mm

    Electrical parameters


    NameBrand
    PLCGerman SIEMENS
    Low voltage electrical apparatusGerman SIEMENS
    sensorKorea AUTONICS
    guideTaiwan TBI
    tripletTAIWAN AIRTAC
    Solenoid valveTAIWAN AIRTAC
    Gas drillerTaiwan BOA
    Switch powerTaiwan TEND
